MSL-New Light Buoys Series(220/240/260/300)
LED beacon for 18NM integrated route sign

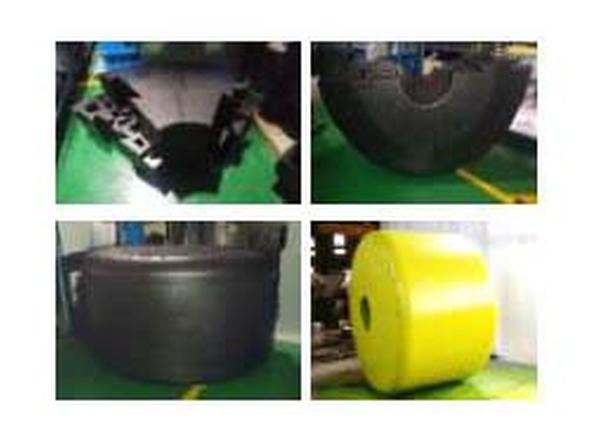

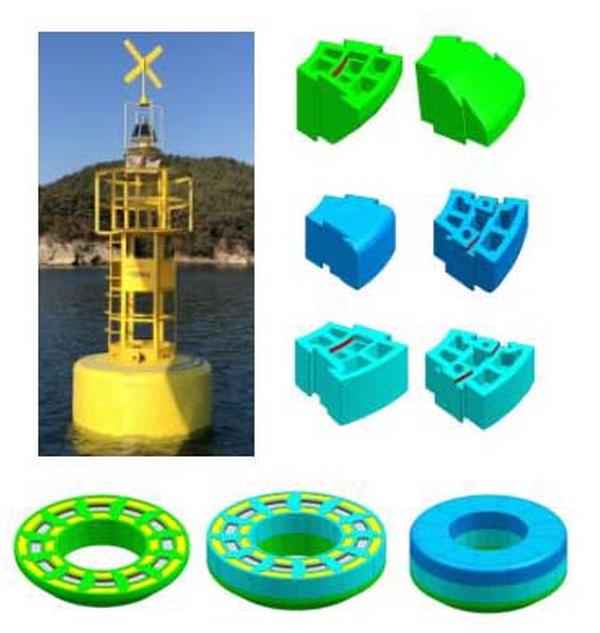

MSL-LB Series is a buoy for AtoN(Aids to Navigation) using new material (EPP).
Provide various sizes of buoys according to the purpose of use.
Using EPP material, Minimize the damage of ships and buoys caused by ship collision.
Easy to install and maintain by light weight. Improved durability by polyurea coating on the outside of EPP body.
*EPP : Expanded Polypropylene
Provide various sizes of buoys according to the purpose of use.
Using EPP material, Minimize the damage of ships and buoys caused by ship collision.
Easy to install and maintain by light weight. Improved durability by polyurea coating on the outside of EPP body.
*EPP : Expanded Polypropylene
- MSL-LB Series is a buoy for AtoN(Aids to Navigation) using new material (EPP).
- Provide various sizes of buoys according to the purpose of use.
- Using EPP material, Minimize the damage of ships and buoys caused by ship collision.
- Easy to install and maintain by light weight.
- Improved durability by polyurea coating on the outside of EPP body.
- Replace iron buoys
- Using Eco-friendly new material(EPP) body
- No filling required
- Reduced installation and maintenance costs
- due to light weight
- Improved durability(Polyurea coating)
- Color : Red/Green/Yellow
| New Material(EPP) Light Buoy | ||||
|---|---|---|---|---|
| Type | LL-30(F)/LB-300 | LL-26(F)/LB-600 | LL-24(F)/LB-240(LL) | LS-24(F)/LB-240(LS) |
| Installation place |
Sheltered waters | Sheltered waters (7kt under) |
Sheltered waters (5kt under) |
Sheltered waters (5kt under) |
| Water depth | 40m > | 50m < | 30m < | 30m < |
| Lantern | 7NM | 7NM | 7NM | 7NM |

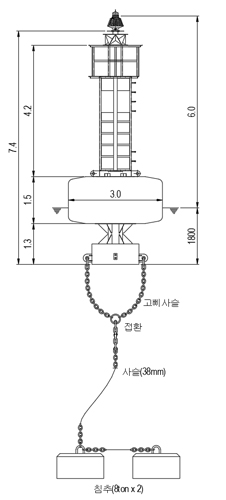

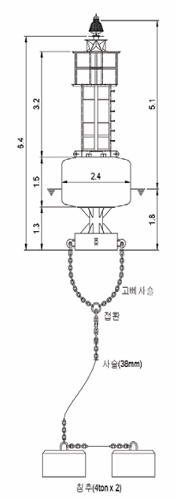

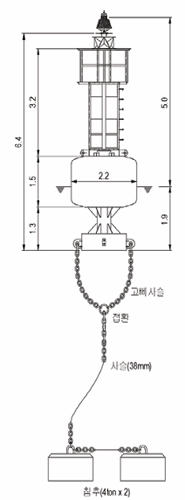

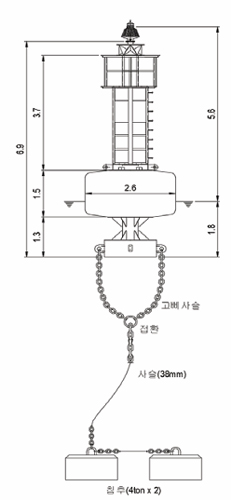

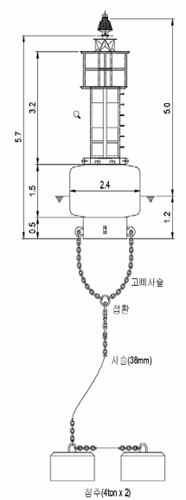

| Installation drawing |
 |
 |
 |
 |
| New Material(EPP) Light Buoy | ||||
|---|---|---|---|---|
| Type | LL-22(F) | LB-160 | LB-80 | LB-60 |
| Installation place |
Sheltered waters (3kt under) |
Sheltered waters (3kt under) |
Sheltered waters (3kt under) |
Sheltered waters (3kt under) |
| Water depth | 30m < | 30m < | 20m < | 20m < |
| Lantern | 7NM | 2 ~ 3NM | 2NM | 2NM |

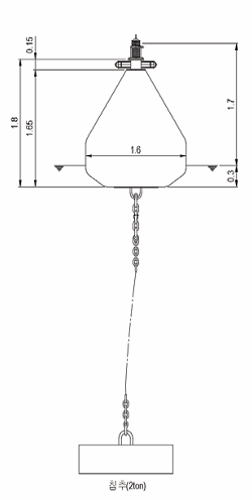

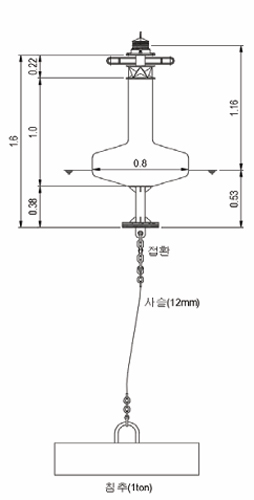

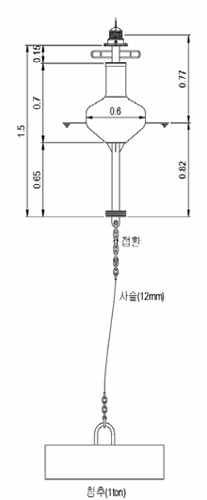

| Installation drawing |
 |
 |
 |
 |
