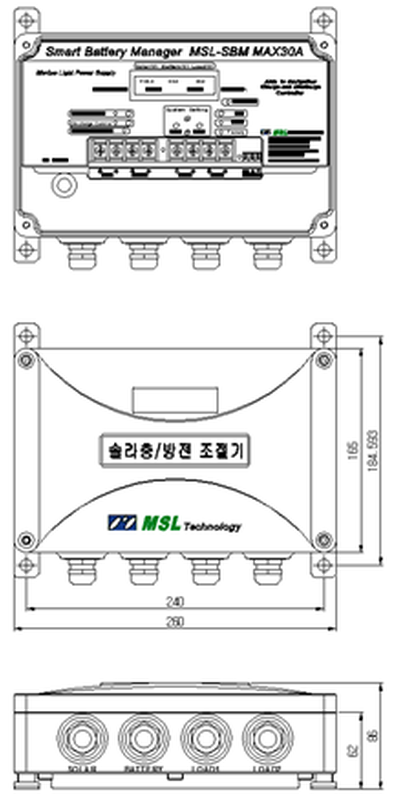

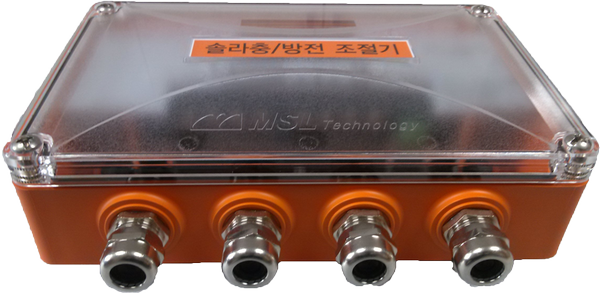

MSL-SBM-Series
SBM series are organized for maximizing the charging efficiency by solar power system
SBM series are organized for maximizing the charging efficiency by solar power system.
It has reverse polarity protection circuit and system of auto-switching to floating charge when it's fully charged.
It is organized for preventing light-out of lantern by the separation control part and power supplying part of SBM.
The product includes temper sensor inside for preventing overheating.
If the internal temperature is higher than the set point, system will stop the charge-discharge control for product protection.

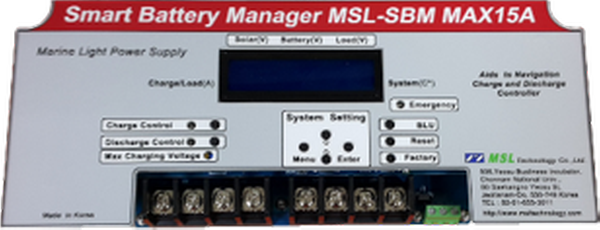

The system will restart charge-discharge when the internal temperature is lower than the set point. Simple internal wiring (no electrical wire); applied the LCD panel.
Supporting the monitoring function by RS232
It has reverse polarity protection circuit and system of auto-switching to floating charge when it's fully charged.
It is organized for preventing light-out of lantern by the separation control part and power supplying part of SBM.
The product includes temper sensor inside for preventing overheating.
If the internal temperature is higher than the set point, system will stop the charge-discharge control for product protection.
The system will restart charge-discharge when the internal temperature is lower than the set point. Simple internal wiring (no electrical wire); applied the LCD panel.
Supporting the monitoring function by RS232
- SBM series are organized for maximizing the charging efficiency by solar power system.
- It has reverse polarity protection circuit and system of auto-switching to floating charge when it's fully charged.
- It is organized for preventing light-out of lantern by the separation control part and power supplying part of SBM.
- The product includes temper sensor inside for preventing overheating. If the internal temperature is higher than the set point, system will stop the charge-discharge control for product protection.
- The system will restart charge-discharge when the internal temperature is lower than the set point.
- Simple internal wiring (no electrical wire); applied the LCD panel.
- Supporting the monitoring function by RS232
- Input voltage : under 40V
- Floating charge voltage : DC 13.5V ~ 15.5V
- Max charge voltage : DC 15.5V
- Max charge-discharge current : 30A(10A/15A/20A/25A)
- Rated voltage : 12V/24V
- No-load current : under 40mA (DC 12V)
- Over discharge cut-off voltage : DC 9V ~ 11V
- Resume discharge voltage : DC 9V ~ 11V
Monitoring Data
- Solar power voltage (V)
- Battery voltage (V)
- Charge-discharge current(A)
- Output voltate(V)
Electrical Characteristic
- Input Voltage < 35V
- Floating charge Voltage DC 13.5V ~ 15.5V(Changeable)
- Max charge Voltage DC 15.5V(Chargeable)
- Max charge-discharge Current 10A, 15A, 20A, 25A, 30A
- Rated Voltage DC 12V/24V
- No-load current under 40mA(DC 12V)
- Over charge cut-off Voltage DC 9V ~ 11V(Changeable)
- Resume discharge Voltage DC 9V ~ 11V(Changeable)
Environment performance
- Operating temperature -30℃ ~ +80℃
- Body IP-68(NEMA4X/KS C IEC 60529)
Communication environment
- Transfer rate 9,600bps
- Transfer period < 2 Second
